12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

Product Categories
Dongguan Taotao Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

Brand Name : Taowaves

Model Number : EC12A00V01

Certification : ISO9001 and IATF16949

Place of Origin : Dongguan,China

MOQ : 2K

Price : usd0.11~0.2

Payment Terms : T/T

Supply Ability : 5,000,000pcs/Month

Delivery Time : 7~20working days

Packaging Details : Blister tray inside, carton outside

Shaft Type : Plastic Insulated Shaft

Size : 12mm

Pulses : 12/24

detent : 0/12/24

Working Principle : Incremental

Life : 30000cycles

Supply Voltage : 5V DC

Operating Temperature : -10°C to 70°C

Protection Level : IP65

Contact Now

12mm Plastic Insulated Shaft Rotary Encoder Without Switch for Small Appliances

Product Description

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

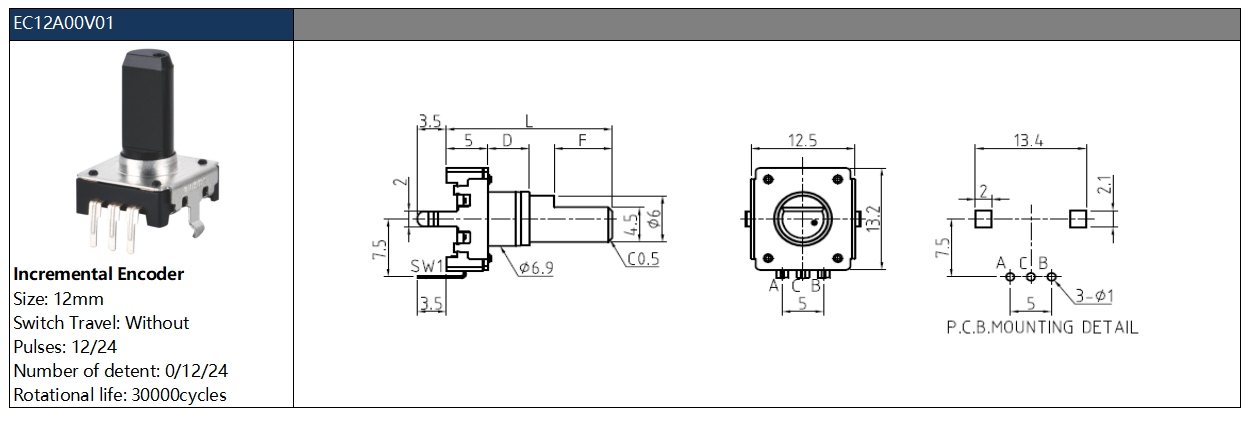

EC12 Product Specifications

1.Electrical Characteristics
Rated voltage: DC 5V
Resolution: 12/24pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 12≥6.7ms / 24≥3.4ms
2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 3～15mN.m.(30～150gf.cm)
Shaft wobble: 0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 8KG
3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30℃ to+80℃
Storage temperature range: -40℃ to+85℃


Our Factory:

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances
Application:

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

Choose us as your ODM partner for a seamless, end-to-end custom manufacturing experience that turns your vision into reality. Contact us today to discuss your project and discover how we can help bring your product ideas to life.

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
